Mining operations rely heavily on electrical equipment for powering machinery, ventilation systems, and essential infrastructure. Due to high power demands in hostile environments associated with mining operations, and to ensure both efficiency and safety of its electrical operations. One component that ensures both is the vacuum circuit breaker (VCB). But just how exactly does one of these breakers function within this context and why are they preferred over other forms of circuit breakers?
Understanding Vacuum Circuit Breakers

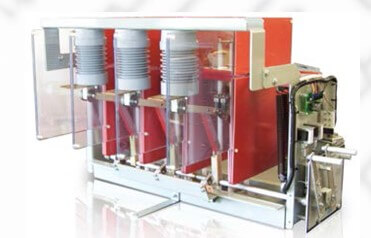

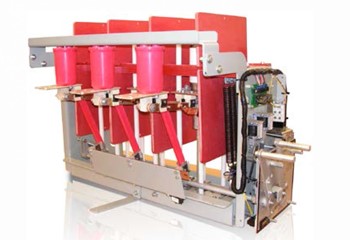

Vacuum circuit breakers (VCBs) are an innovative type of circuit breaker which use vacuum technology to switch electrical current and prevent faults, often used in high voltage mining applications due to their reliability, low maintenance requirements and outstanding arc quenching properties.
Vacuum circuit breakers use vacuum as an arc-extinguishing medium instead of traditional air or oil circuit breakers to extinguish any electrical hazards caused during circuit interruption, significantly decreasing the electrical hazards risk in mining operations and making vacuum breakers an essential element in the mining industry operations. How Do Vacuum Breakers Work?
A vacuum circuit breaker operates through several steps. Within its normal operating parameters, its main switch remains closed so as to allow electrical current to pass uninterruptedly through.
Fault Detection
When abnormal current, such as short circuit or overload conditions, are identified, a protective relay sends a signal to open up the circuit breaker. Arc Formation - Once separated contacts start moving away from one another, an electric arc forms due to air particles being charged by separation and coming together again between them, creating an electric current-generating electric arc between them that forms upon breaking through an obstacle such as short circuit or overload conditions.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
Arc Quenching in Vacuum
Within the vacuum chamber, an arc quickly extinguishes as there is no medium (such as air or gas ) that sustains it. Furthermore, oxygen particles prevent any new formation thus providing for quick and safe interruption of any potential fire arcs that might come about as a result of air/gas exposure.
Circuit Interrupt
By extinguishing an arc and stopping electrical current flowing to it, an interruption to a circuit occurs, isolating its defective section from future damage and protecting equipment in its path.
Restoring Power to the System
Once maintenance or fault resolution has taken place, power may be restored back onto the system by either manually or automatically resetting of the circuit breakers.
Vacuum Circuit Breakers in Mining
Mining environments present unique challenges, including dust and moisture issues as well as high voltage loads with fluctuating power demands. As such, vacuum circuit breakers have long been preferred choices in these applications:
1. Increased Safety
Mining operations often entail high-voltage electrical systems which pose potential danger to workers and equipment, however, vacuum circuit breakers offer fast and effective circuit interruption capabilities to mitigate fires, explosions, or equipment breakdown. This way vacuum circuit breakers help improve overall workplace safety.
2. Reduced Maintenance
In comparison with conventional circuit breakers, VCBs typically require significantly reduced ongoing maintenance expenses due to not using oil or gas extinguishing mechanisms for their arc extinguishing properties - eliminating risk associated with oil leakage as well as downtime and associated expenses when used for mining operations.
3. Superior Durability and Longevity
Mining sites often face harsh environments, including temperature variations, dust accumulation and vibration. Vacuum circuit breakers were designed specifically to withstand these demanding environments without succumbing to wear-and-tear over their long operational lifespans.
4. Energy Efficiency
VCBs boast minimal power losses during operation, making them highly energy-efficient; this factor becomes especially significant in mining operations where power use is key to daily operation.
5. Dependable Performance in Harsh Conditions
Vacuum circuit breakers offer reliable performance even under harsh mining conditions; unlike air circuit breakers, which may become affected by dust and moisture build-up. They operate inside an enclosed chamber which remains sealed to maintain consistent performance even under challenging mining environments.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
Applications of Vacuum Circuit Breakers in Mining.
Vacuum circuit breakers have multiple applications within mining operations. Some examples are:
- Underground and Surface Mining Power Distribution - To provide reliable power distribution between underground and surface mine operations.
- Heavy Machinery Protection - Covering critical mining equipment like drills, crushers and conveyor belts from electrical faults.
- Substations and Switchgear Systems - Regulating and safeguarding electrical distribution within mining facilities.
- Ventilation and Pumping Systems - Safeguarding essential safety and ventilation equipment by guaranteeing its uninterrupted use.
Future Trends for Vacuum Circuit Breakers in Mining
Mining industries continue to adapt and advance electrical safety technology; future advancements include advances in vacuum circuit breaker technology that may include:
- Smart Monitoring Systems - Integration of IoT sensors allows real-time monitoring and predictive maintenance on breakers.
- Eco-Friendly Designs - Designs that reduce environmental impact, such as more energy-efficient vacuum interrupters, are innovations with which we strive.
- Higher Voltage Ratings - Development of VCBs with increased voltage capacities to support larger mining operations.
- Improved Automation Features - Additional automation features have been integrated to provide faster response times and remote operation capabilities for mining operations.
Conclusion
Mining operations require reliable electrical safety solutions that improve operational efficiency and protect worker protection; vacuum circuit breakers play an integral part here. These vacuum circuit breakers utilize vacuum technology for arc quenching to provide safer, longer lasting and lower maintenance solutions than their high voltage electrical counterparts used by mining operations.
Understanding how vacuum circuit breakers (VCBs) function can assist mining operators with making informed decisions regarding electrical protection. With advances in technology, VCBs will continue to adapt and provide even greater safety and efficiency benefits in mining environments. Becker Mining USA is known for providing reliable vacuum circuit breakers and electrical solutions tailored to mining environments - providing top quality safety and power management at every turn.
