Underground mines depend on electrical systems to power continuous miners, conveyors, ventilation equipment, pumps, communication systems, and other critical operations. When an electrical fault occurs in an enclosed entry, heat and pressure spike fast. Installing an arc-resistant power center helps control an internal arcing fault by redirecting hazardous blast energy away from working crews. Becker Mining USA supplies specialized electrical gear built for tough U.S. underground coal and metal mines.
Key Takeaways
- Direct high-pressure blast energy away from miners through engineered venting ducts.
- Protect expensive power centers, switchgear, and transformers from cataclysmic internal fault damage.
- Maintain compliance with strict MSHA standards and ANSI/IEEE testing protocols in damp, dusty entries.
- Combine protective enclosures with reliable grounding, circuit breakers, and scheduled maintenance for complete site safety.
How Does Arc Resistant Gear Direct Hazardous Energy Away From Miners?
Engineered arc resistant electrical enclosures utilize reinforced steel walls and targeted pressure-relief vents to contain and redirect arc flash energy. The reality on the ground is that internal faults hit with explosive physical force. Equipment engineered to ANSI/IEEE C37.20.7 standards channels hot gases and molten metal up and away from crew members working nearby, keeping front, side, and rear perimeter zones protected during unexpected short circuits.
4 Steps to Containing Fault Energy Downhole
- Contain Initial Shockwaves
- Heavy-gage reinforced steel panels absorb the immediate mechanical force generated by an internal arc fault.
- Heavy-duty door latches prevent cabinet doors from blowing open into active haulage ways.
- Redirect Thermal Blast Gases
- Integrated pressure-relief baffles automatically open when internal pressure spikes.
- Exhaust channels direct superheated plasma away from active working faces and operator walkways.
- Isolate High-Voltage Busbars
- Internal barriers isolate fault damage to single compartments.
- Modular isolation prevents localized faults from torching adjacent transformer sections.
- Maintain Enclosure Integrity
- Certified structural welds resist extreme cabinet warping during high-amperage faults.
- Sealed seam joints block burning embers from escaping into dust-laden mine air.

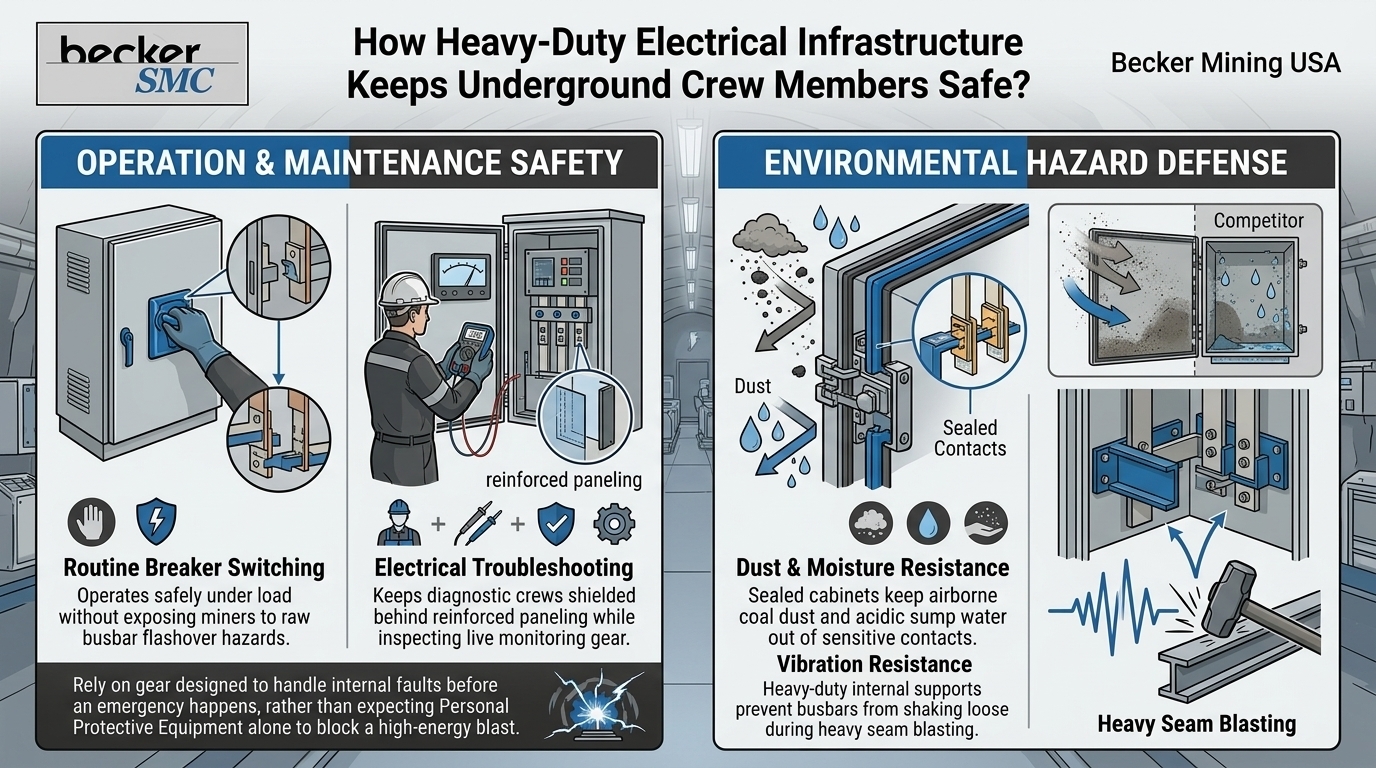

How Does Heavy-Duty Electrical Infrastructure Keep Underground Crew Members Safe?
Layered arc resistant protection safeguards electricians during routine tasks like switching breakers or troubleshooting energized distribution boxes. Mechanics routinely perform live voltage checks and breaker racking downhole. Here’s the part most safety managers realize after an incident: rely on gear designed to handle internal faults before an emergency happens, rather than expecting Personal Protective Equipment alone to block a high-energy blast.
Operation & Maintenance Safety
- Routine Breaker Switching: Operates safely under load without exposing miners to raw busbar flashover hazards.
- Electrical Troubleshooting: Keeps diagnostic crews shielded behind reinforced paneling while inspecting live monitoring gear.
Environmental Hazard Defense
- Dust & Moisture Resistance: Sealed cabinets keep airborne coal dust and acidic sump water out of sensitive contacts.
- Vibration Resistance: Heavy-duty internal supports prevent busbars from shaking loose during heavy seam blasting.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
Comparison: Standard Mining Switchgear vs. Arc Resistant Enclosures
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
What Major Components Require High-Level Protection Downhole?
- Power Center: Converts high-voltage distribution lines to usable operational power for continuous miners.
- Vacuum Circuit Breaker: Cuts off high-amperage fault currents before thermal runaway melts internal copper busbars.
- Dry-Type Transformer: Steps down utility voltages in tight seam entries without using flammable liquid coolants.
- Explosion-Proof Junction Box: Encloses high-voltage splice points to prevent methane ignition in gassy mines.

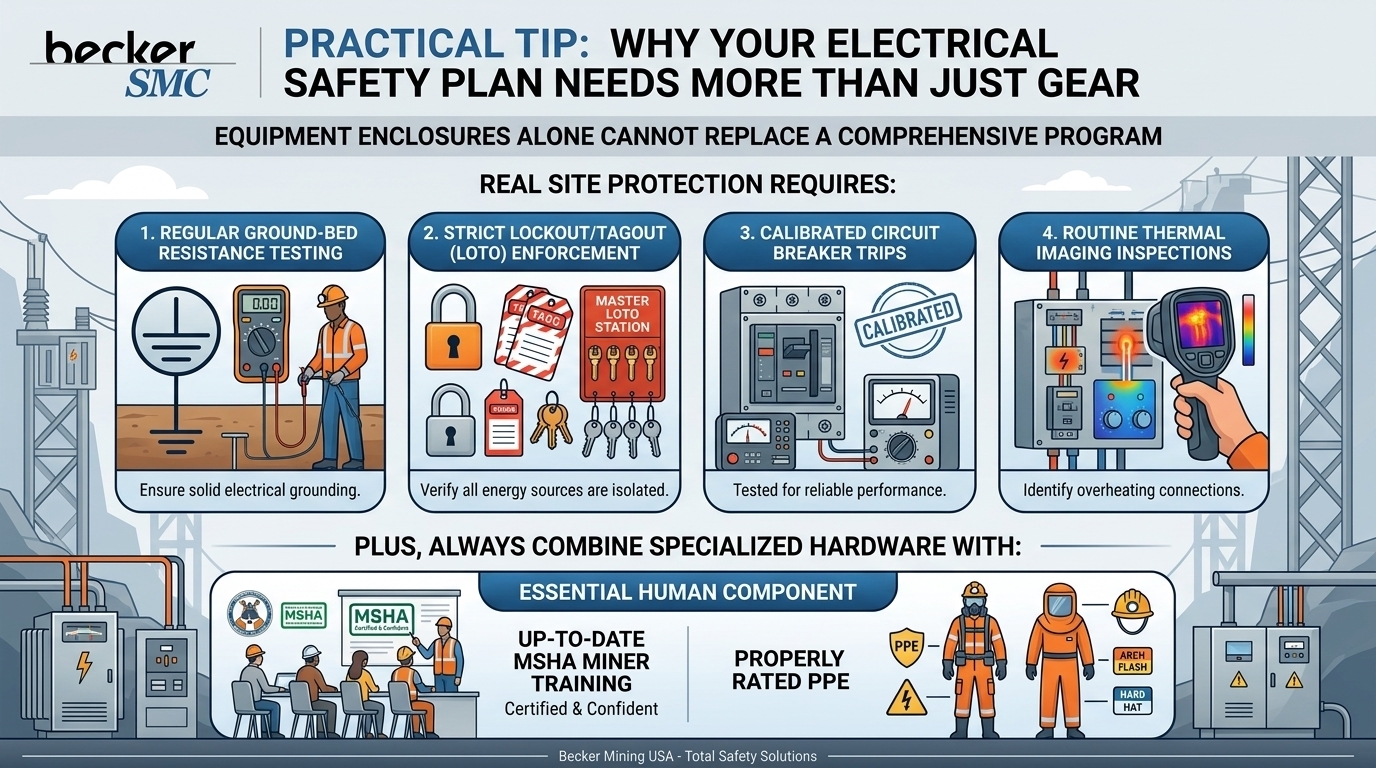

Practical Tip: Why Your Electrical Safety Plan Needs More Than Just Gear
Field Note on Mine Safety
Equipment enclosures alone cannot replace a comprehensive electrical safety program. Real site protection requires regular ground-bed resistance testing, strict Lockout/Tagout enforcement, calibrated circuit breaker trips, and routine thermal imaging inspections. Always combine specialized hardware with up-to-date MSHA miner training and properly rated PPE.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
Upgrade Your Underground Mine Power Protection
Securing your underground power network prevents catastrophic equipment loss while keeping maintenance technicians safe in tight entries. Becker Mining USA engineers high-reliability power centers, transformers, switchgear, and customized arc resistant solutions built specifically for demanding American mining conditions. Protect your crews and secure your production timelines today—Call Becker Mining USA at to speak with a power distribution specialist.
Frequently Asked Questions
Q: What is arc-resistant electrical equipment?
A: Arc-resistant electrical equipment is engineered hardware designed to safely contain and vent extreme thermal energy and pressure generated during internal arcing faults. This construction channels dangerous blasts upward and away from working technicians.
Q: Why is specialized electrical protection critical downhole?
A: Underground mine entries create confined spaces where explosive pressure waves and superheated gases cannot dissipate naturally. Specialized enclosures shield personnel working in narrow corridors from thermal and physical injuries.
Q: How does explosion-proof gear differ from arc-resistant gear?
A: Explosion-proof gear prevents internal sparks from igniting external methane gas, while arc-resistant gear manages internal arcing pressures to protect workers nearby. Both systems address distinct underground electrical hazards.
Q: Can engineered enclosures eliminate arc flash hazards?
A: No equipment eliminates arc flash risk entirely, but specialized enclosures significantly reduce the severity of injuries during an internal fault. Safe work practices, PPE, and proper grounding remain essential.
Q: What electrical products does Becker Mining USA manufacture?
A: Becker Mining USA manufactures arc-resistant power centers, explosion-proof switchgear, transformers, longwall distribution systems, and custom E-Houses. They supply complete power solutions for U.S. mines.
