What Is Switchgear All About?

Submitted by Kristian on Mon, 02/26/2024 - 13:00

Electricity in daily life is one of mankind's greatest blessings, but it must be supplied securely. Employing safety devices to maintain the security level of electrical distribution is quite tricky. Various devices aid in the protection of electrical connections in multiple settings, including industrial and residential. Among these protective devices is Switchgear.

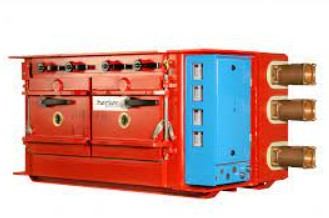

What Is Switchgear All About


In a hurry? Call us at 276-285-3841

Switchgear is an essential component of an electrical power system. Switchgear contains components that safeguard electrical hardware against malfunctions. These components include:

  • Fuses
  • Switches
  • Relays
  • Isolators
  • Circuit Breakers
  • Potential And Current Transformers
  • Signaling Devices
  • Lightning Arresters, and others.

How Does A Switchgear Operate?

Switchgear encompasses devices that switch and protect. This device allows you to operate electrical equipment, generators, distributors, transmission lines, etc. A short circuit occurs within the power system when a large current flows through the devices. As a result, the equipment may be destroyed, causing interruptions for the operators. The relay in the Switchgear terminates the defective circuit and disconnects the disturbed line. This prevents harm to the appliances and assures an uninterrupted power supply.

Characteristics Of Switchgear

It Enhances Reliability.

Switchgear ensures uninterrupted interconnectivity and increased capacity at generating stations. It improves reliability by separating problematic circuit parts in the event of a malfunction.

It Helps In Quick Response.

In a circuit failure, the Switchgear counts swiftly to prevent damage from spreading to the healthy components. As a result, it helps to prevent the circuit from completely shutting down.

It Acts As A Physical Control Unit.

Switchgear allows for hand-held actions in the event of an electrical control malfunction.

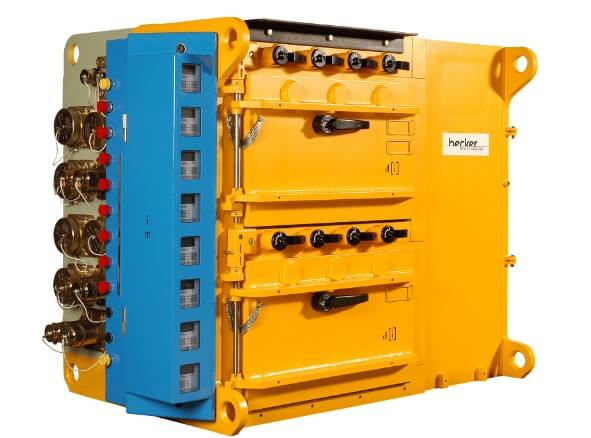

What Is Switchgear All About


In a hurry? Call us at 276-285-3841

Switchgear Variants

There are three main types of Switchgear based on their voltage levels.

High Voltage Switchgear (H.V.)

High voltage refers to a power system that deals with voltages of more than 36kV. The arcing produced during switching is very high when the voltage is high. As a result, particular attention must be paid to designing high-voltage Switchgear. High-voltage circuit breakers, like SF6 or vacuum circuit breakers, are the primary components of H.V. switchgear.

High-voltage circuit breakers must include unique features to ensure safe and reliable operation. High-voltage circuit breakers rarely trip or switch incorrectly. Most of the time, these circuit breakers remain ON and can be operated after an extended time. So, Circuit Breakers must be dependable enough to provide safe operation when necessary.

Medium-Voltage Switchgear (M.V.)

Switchgear for medium voltage applications is rated between 3.3 kV and 33 kV. Medium voltage switchgear is primarily utilized to distribute electrical energy across various electrical networks. They include most substation equipment, including:

  • Minimum Oil Circuit Breakers,
  • Bulk Oil Circuit Breakers,
  • Air Magnetic,
  • Sf6 Gas-Insulated,
  • Vacuum, And
  • Gas-Insulated Switchgear.

They can be metal-enclosed indoors, outdoors, or outdoors without a metal enclosure. The interruption medium could be oil, SF6, or vacuum.

Low Voltage Switchgear (L.V.)

Switchgear for low-voltage applications is typically rated up to 1000 V A.C. and 1500 VDC. The most typical application is in LV distribution boards. These are commonly used in low-voltage devices like:

  • Oil Circuit Breakers (OCBs),
  • Air Circuit Breakers (ACBs),
  • Switch Fuse Units (SFUs),
  • Earth Leakage Circuit Breakers (ELCBs),
  • Residual Current Protective Devices (RCCB & RCBO).

To learn more about Switchgear and find out what suits your setting best, visit Becker website.

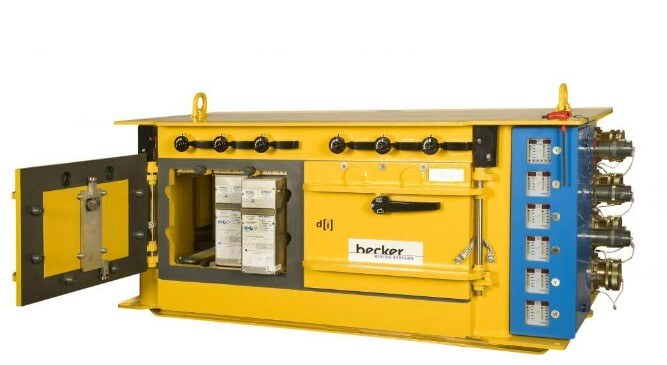

What Is Switchgear All About


In a hurry? Call us at 276-285-3841


In conclusion, switchgear plays a vital role in ensuring the safety and reliability of electrical power systems across various voltage levels. By encompassing a range of protective devices such as fuses, relays, circuit breakers, and transformers, switchgear effectively safeguards electrical equipment from malfunctions and interruptions caused by short circuits or other faults. Its characteristics, including enhancing reliability, facilitating quick response, and serving as a physical control unit, underscore its importance in maintaining uninterrupted power supply and preventing damage to critical components. With different variants tailored to high, medium, and low voltage applications, switchgear offers versatility to suit diverse electrical distribution needs. Understanding the types and functionalities of switchgear is essential for optimizing the performance and safety of electrical systems in industrial, commercial, and residential settings. For further information and tailored solutions, exploring resources such as the Becker website can provide valuable insights into selecting the most suitable switchgear for specific requirements.

Contact Us Today!

Ready to optimize your electrical distribution system? Visit the Becker website today to explore our range of switchgear solutions tailored to your needs. Whether it's high, medium, or low voltage applications, we've got you covered. Don't compromise on safety and reliability. Click here to learn more and find the perfect switchgear for your setting.
